Dynamic storing with Kardex VBM Box

The VBM Box base it design and developed for Kardex Vertical Buffer Modules, both as a storage box but also as a transport box that includes a divider system with our unique frame system.

With dimensions 638 x 438 x 138 mm*, the box is perfect to match the pitch of Kardex Vertical Buffer Modules with a minimum of lost utilization rate and a maximum of storage volume compare to all other boxes.

The height of the Kardex VBM Box can be extended in a 50 mm grid using push-on frames. The transverse and longitudinal dividers also come in different heights.



We use as standard polypropylene (PP) as material in our production sites. We take care of, and recycle any remaining material in our production process.


The Kardex VLM Box base is 100% recyclable.


Stay flexible with Kardex VBM Box

The Kardex VBM Box is a modular box system built for Kardex Remstar Vertical Buffer Modules. It can make your dynamic storage and retrieval solutions even more profitable.

The Kardex VBM Box is flexible in height, width and depth and can offer a staggering 256 different location types from just one box to meet your needs. Save valuable space, get a supreme filling degree and avoid costly picking errors by installing the Kardex VBM Box in your Vertical Buffer Module from Kardex Remstar.

Why Kardex VBM Box?

  • Higher storage capacity with a smaller quantity of bins per LR35
  • Larger volume compared to standard Euro bins on the market
  • Optionally available with drainage holes (allowed for sprinkler systems)
  • Silent box with double bottom (approved for conveyor systems)
  • Subdivisions are coordinated with the Power Pick Global warehouse management system
  • Suitable for storage of cartons/euro bins measuring 600x400/400x300/300x200 or 200x150 mm

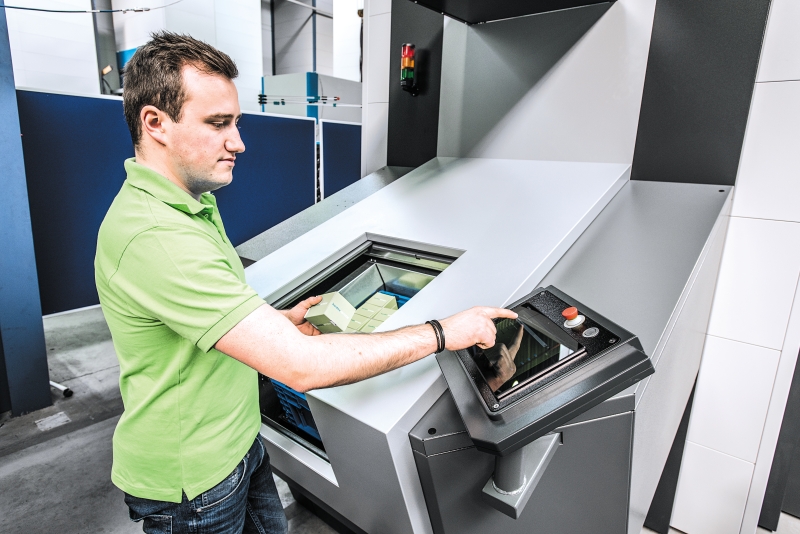

Click to read more about the machine in the picture above - Vertical Buffer Module from Kardex Remstar





Made for Kardex Remstar Vertical Buffer Module

The VBM Box system can be used for 440x640 LR35 and for 440x640 LT35. The different height of the VBM Box system is carefully developed to maximize the filling rate of the machines, by harmonize the machines different standard height sensor to the selectable height of VBM Box, you can gain >30% storage volume by using VBM Box!



Technical data

The dimensions of a Kardex VBM Box is approx. 638x438x138 mm. Each box can be divided into smaller locations by two different length of dividers in 4 different heights to match your specific needs of location size.  The height of the Kardex VBM Box base is always the same 138 mm, but with adding the 50 mm high frame you can adjust the total height of the complete box to 188/238/288/338/388 mm. The dividers are available up to 288 mm heights.



Kardex VBM Box base, frame and dividers are all in a dark blue colour. Colour variations may occur from production batch to batch. Returns based on colour variations are not accepted.

PRODUCT



ART NO

SAP ART NO

MASS (G)

DIMENSIONS (MM)

COLOUR

VBM Box base (NS PP) 9064-120 7220866 2250    638x438x138 Blue
VBM Box base (WS PP) 9064-121 7220874 2250 638x438x138

Blue

VBM Box frame    7064-120 7220882 525 638x438x50 Blue
VBM Box divider 110mm x 440mm 1144-120 7220890 120 110x413 Blue
VBM Box divider 110mm x 640mm 1164-120 7220908 180 110x613 Blue
VBM Box divider 160mm x 440mm 1644-120 7220916 170 160x413 Blue
VBM Box divider 160mm x 640mm 1664-120 7220924 260 160x613 Blue
VBM Box divider 210mm x 440mm 2144-120 7220932 250 210x413 Blue
VBM Box divider 210mm x 640mm 2164-120 7220965 350 210x613 Blue
VBM Box divider 260mm x 440mm 2644-120 7220973 280 260x413 Blue
VBM Box divider 260mm x 640mm 2664-120 7220981 450 260x613 Blue
Label holder single 9026-EHV 7051311 6 92x30 Transparent
Label holder double 9026-EHV-2 7051229 10 92x30+30 Transparent



Download the Kardex VBM Box product folder.

To find out more about this modular system visit the Kardex Remstar website. (www.kardex-remstar.com)

For sales enquiries please contact your local Kardex Remstar office or let us make the introduction by filling out our contact form







The dimensions of a Kardex VBM Box is approx. 638x438x138 mm. Each box can be divided into smaller locations by two different length of dividers in 4 different heights to match your specific needs of location size.  The height of the Kardex VBM Box base is always the same 138 mm, but with adding the 50 mm high frame you can adjust the total height of the complete box to 188/238/288/338/388 mm. The dividers are available up to 288 mm heights.

Kardex VBM Box base, frame and dividers are all in a dark blue colour. Colour variations may occur from production batch to batch. Returns based on colour variations are not accepted.
